Resources


Specification Sheet



Accessories

  • Leg kit part #: 301110006

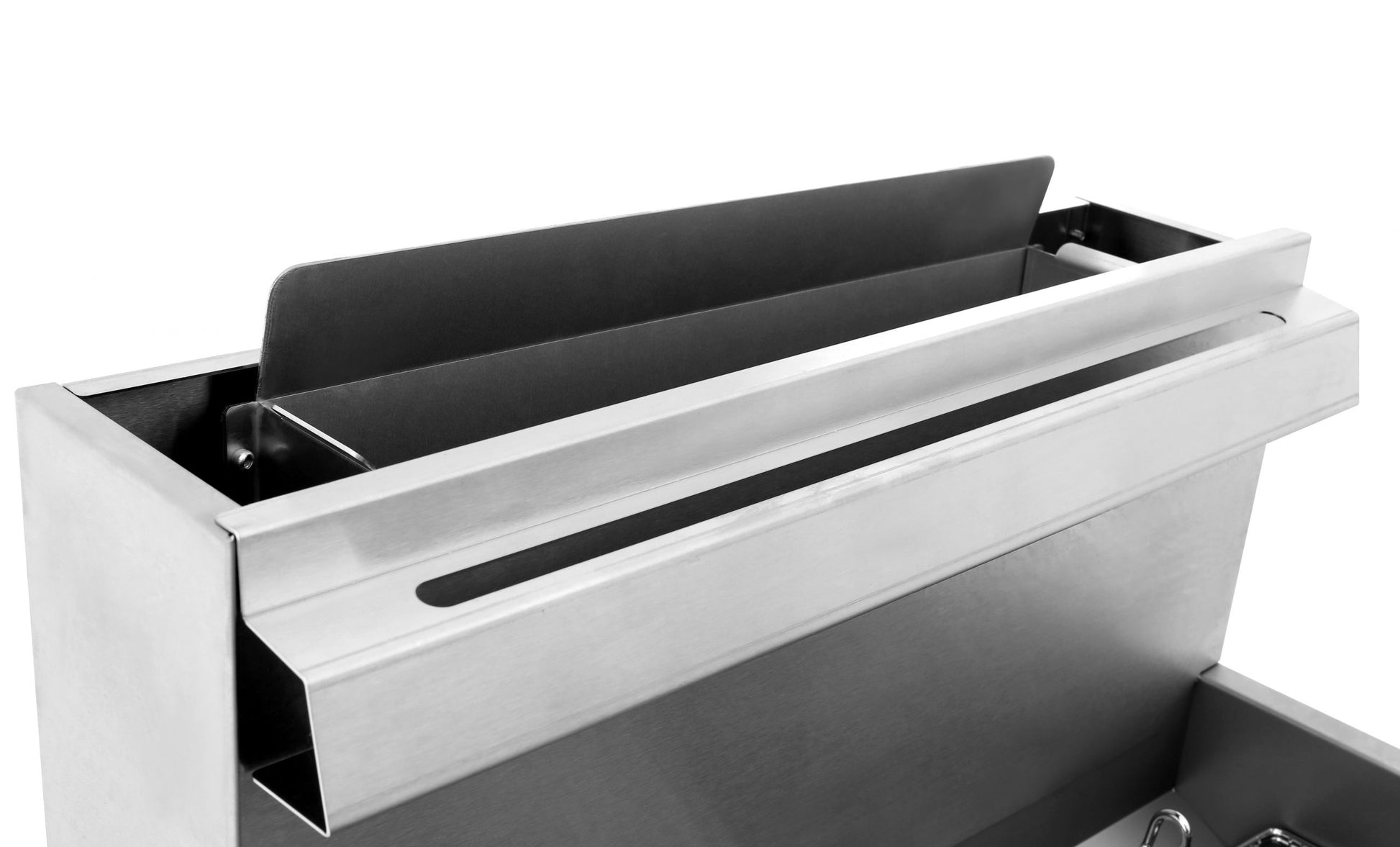

  • Fryer splash guard part #: 21101001047
  • ATFS-35ES & ATFS-40 & ATFS-50 Fryer cover #: 21201001019
  • ATFS-75 Fryer cover #: 21201003015
  • Joiner strip #: 21101001046



Specifications

Model ATFS-40
Burners and Control Method 3 Burners Independent Manual Control
Gas Type NG LP
Intake-tube Pressure (in. W.C.) 4 10
Per B.T.U./h 34,000 30,000
Total B.T.U./h 102,000 90,000
Basket Dimensions 13 3/10 × 6 1/2 × 5 9/10
Exterior Dimension 15 3/5 × 30 1/10 × 44 2/5
Nozzle No.# NG36 LP52
Regulator 4" w.c. 10" w.c.
Net Weight (lbs) 131
Gross Weight 160

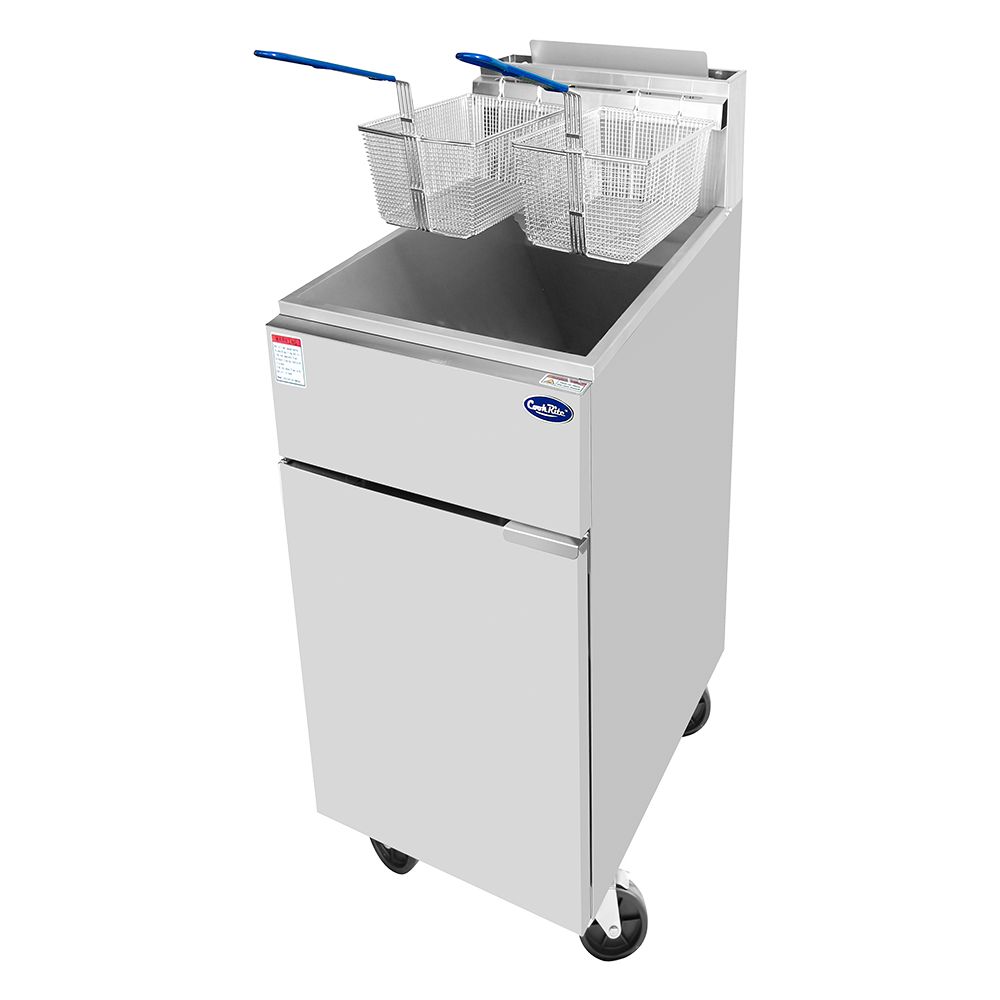

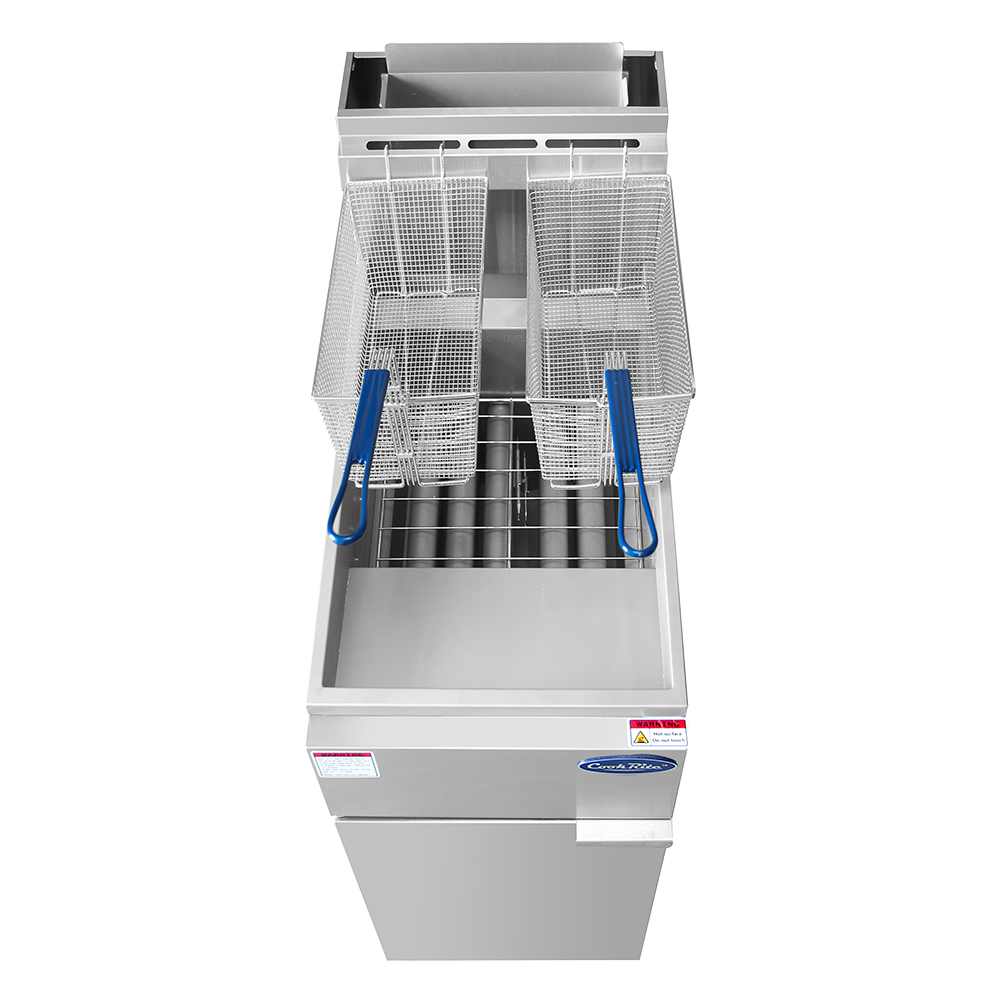

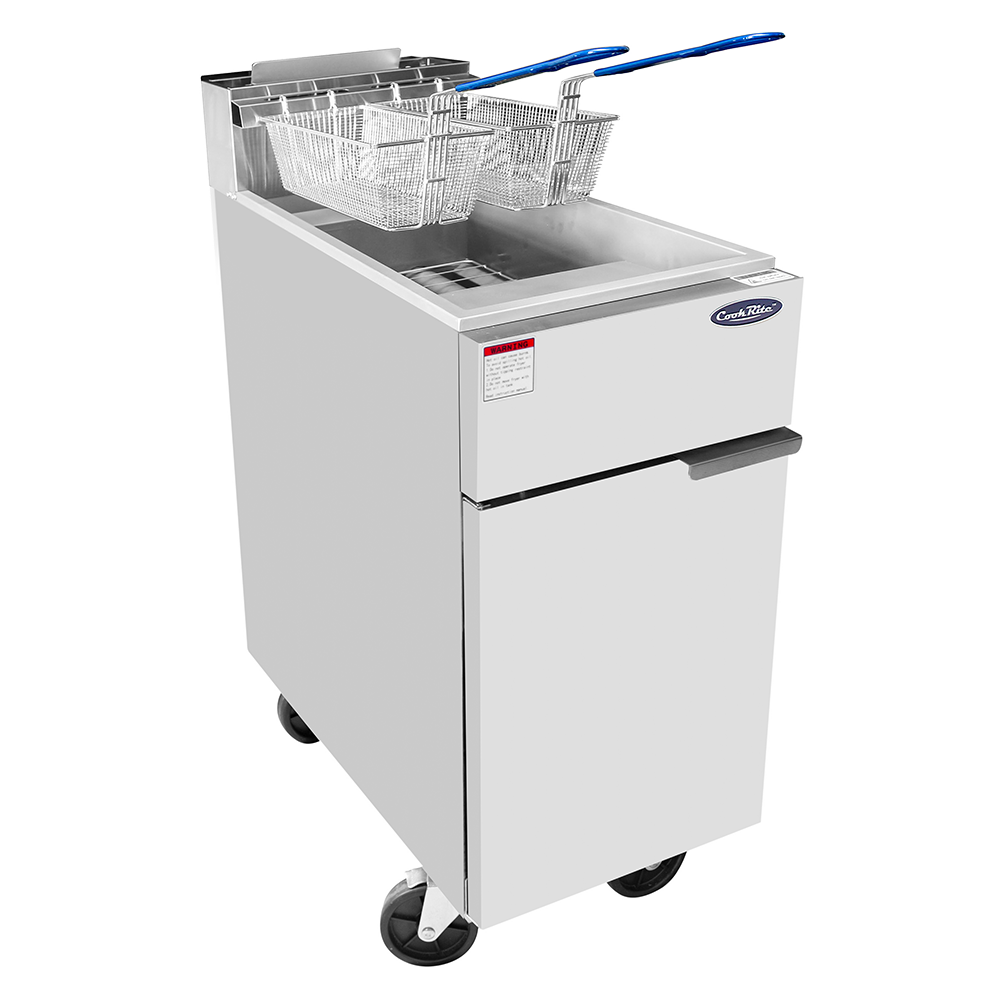

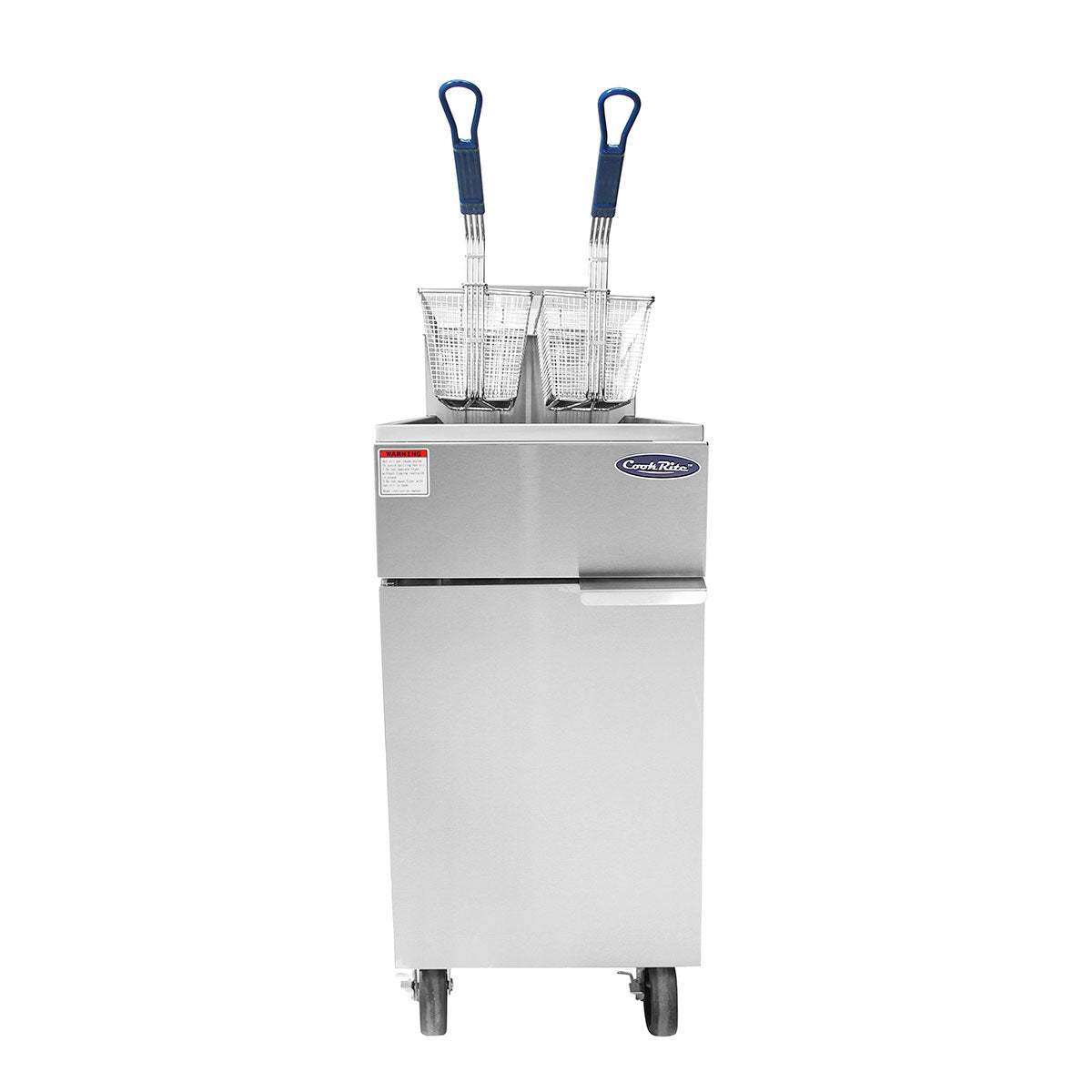

Atosa ATFS-40 HD 40 LB S/S Deep Fryer

Atosa ATFS-40 HD 40 LB S/S Deep Fryer

SKU: ATFS-40
Free Shipping Badge
1 10

$1,068.00
$1,068.00
Sale Sold out

Features

  • Stainless steel exterior and interior
  • Welded stainless steel tank

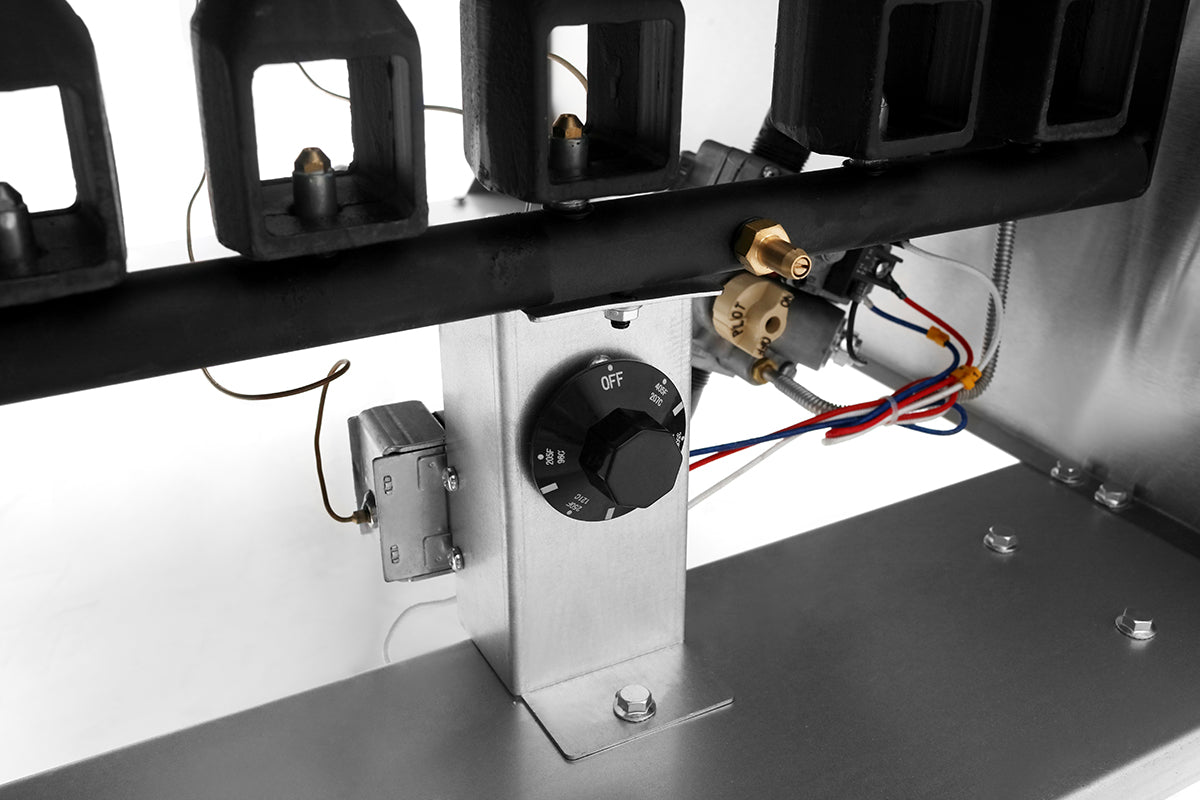

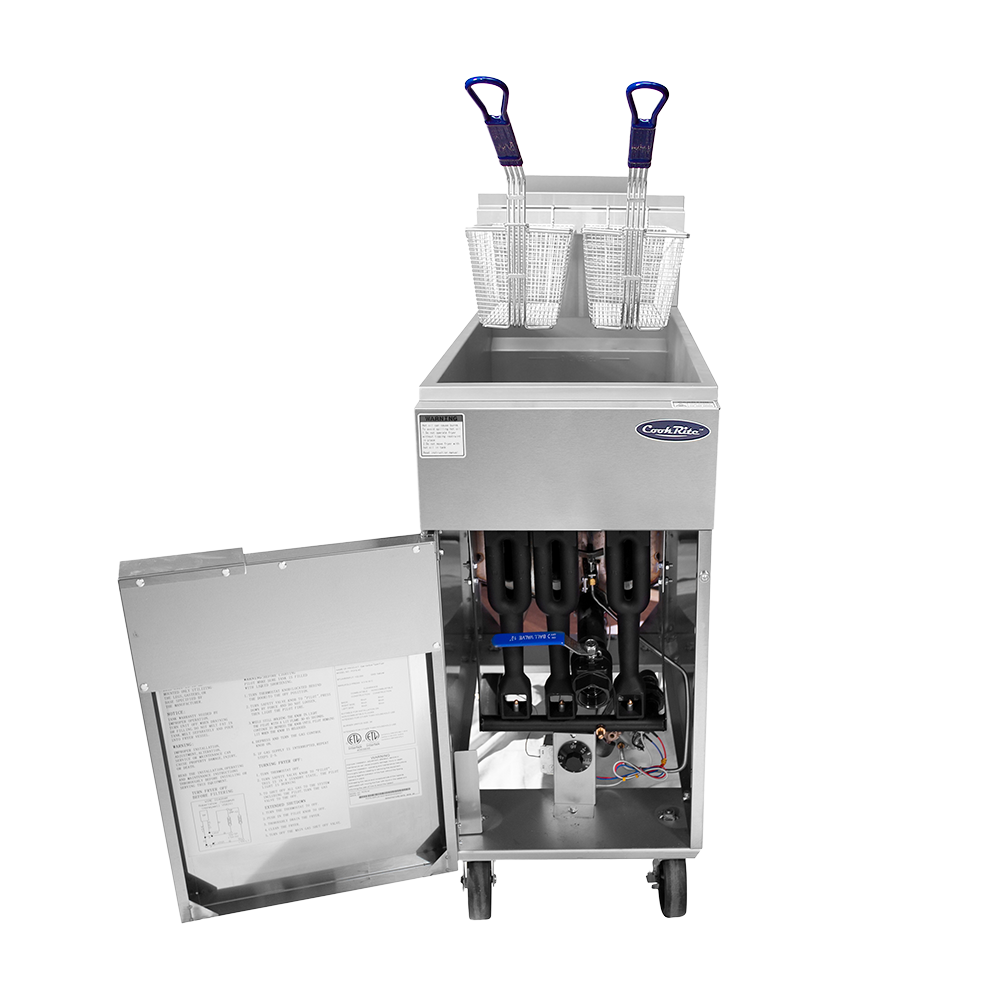

  • Heavy duty burners with a stnding flame and standby pilots
  • High quality thermostat maintains select temperature automatically between 200°F-400°F
  • Oil cooling zone in the bottom of the tank captures food particles and extends oil life
  • Safety valve with an automatic voltage stabilizing function
  • Self-reset high temperature limiting device

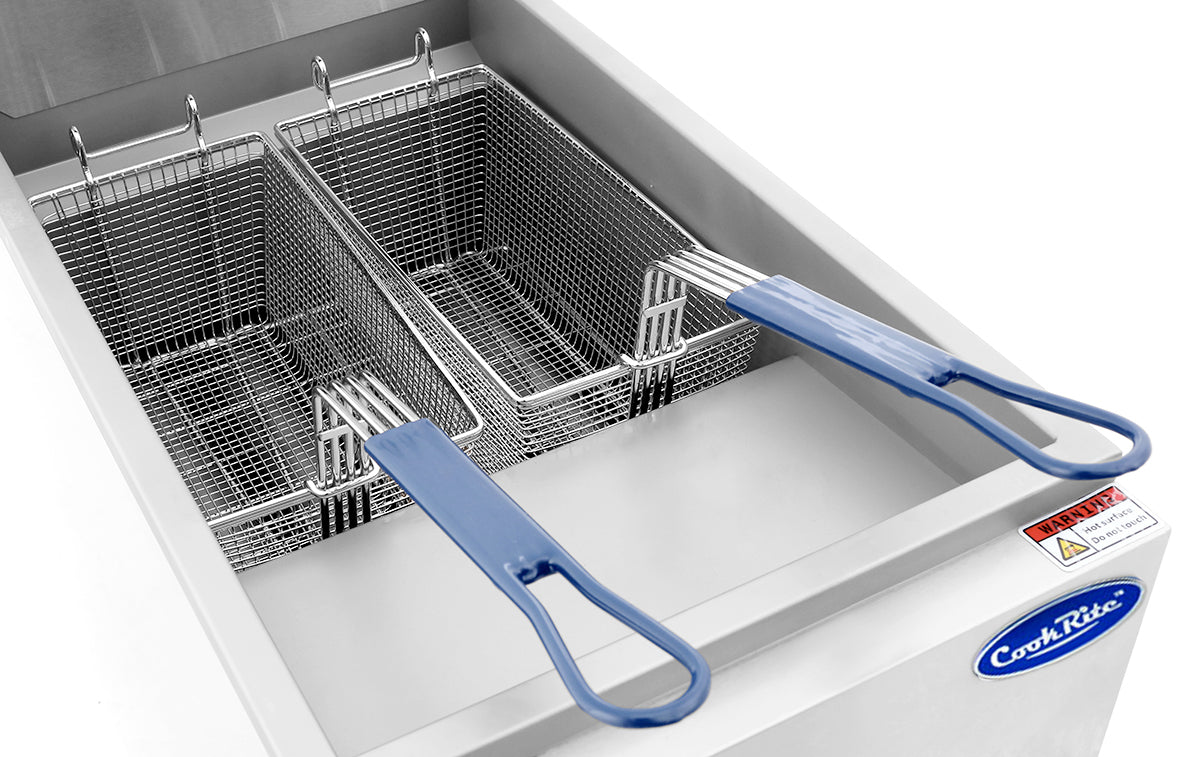

  • Two(2) nickel plated baskets with coated handles standard

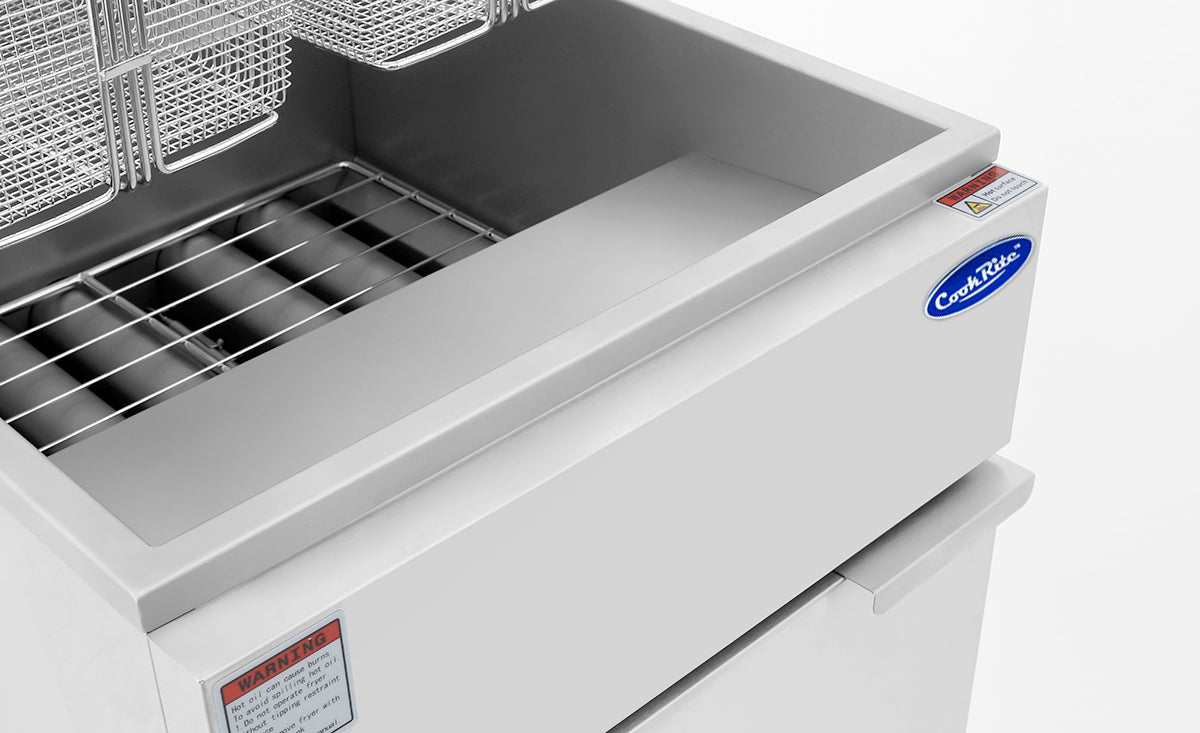

  • Wire crumb rack and basket hanger standard
  • Available in Natural & Propane gas
  • 3/4 ” NPT rear gas connection and regulator
  • Four(4) casters standard
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which are known to the State of California to cause cancer, birth defects, or other reproductive harm. Visit www.p65warnings.ca.gov for additional information.
