Description
100% manufactured from raw materials to provide the best cooking experience, a high standard of quality, and the highest durability in its class to meet the needs of a commercial kitchen.
Accessories
Optional:
- Modular pan rail for 1/6 size pans.
- Cutting Board.
- (6) 6" swivel casters with front locking brakes.
- Additional oven Rack.
- Quick disconnect (3/4 Flex hose quick disconnect 4' long with install kit).
- Stub Back Flue Riser 4" & 10".
Resources
Specifications
Model | R482ST-24B24G | |
---|---|---|
Gas Type | LPG | NG |
Burner Name | Hot Plates / Griddle / Oven | Hot Plates / Griddle / Oven |
Number of Burners | 4 / 2 / 2 | 4 / 2 / 2 |
BTU/h | 128000 / 43000 / 60000 | 120000 / 43000 / 54000 |
Gas Pressure | 10 | 4 |
Exterior Dimensions (inch) | 48 × 42 1/4 × 40 | |
Net Weight | 742 lbs | |
Gross Weight | 866 lbs |

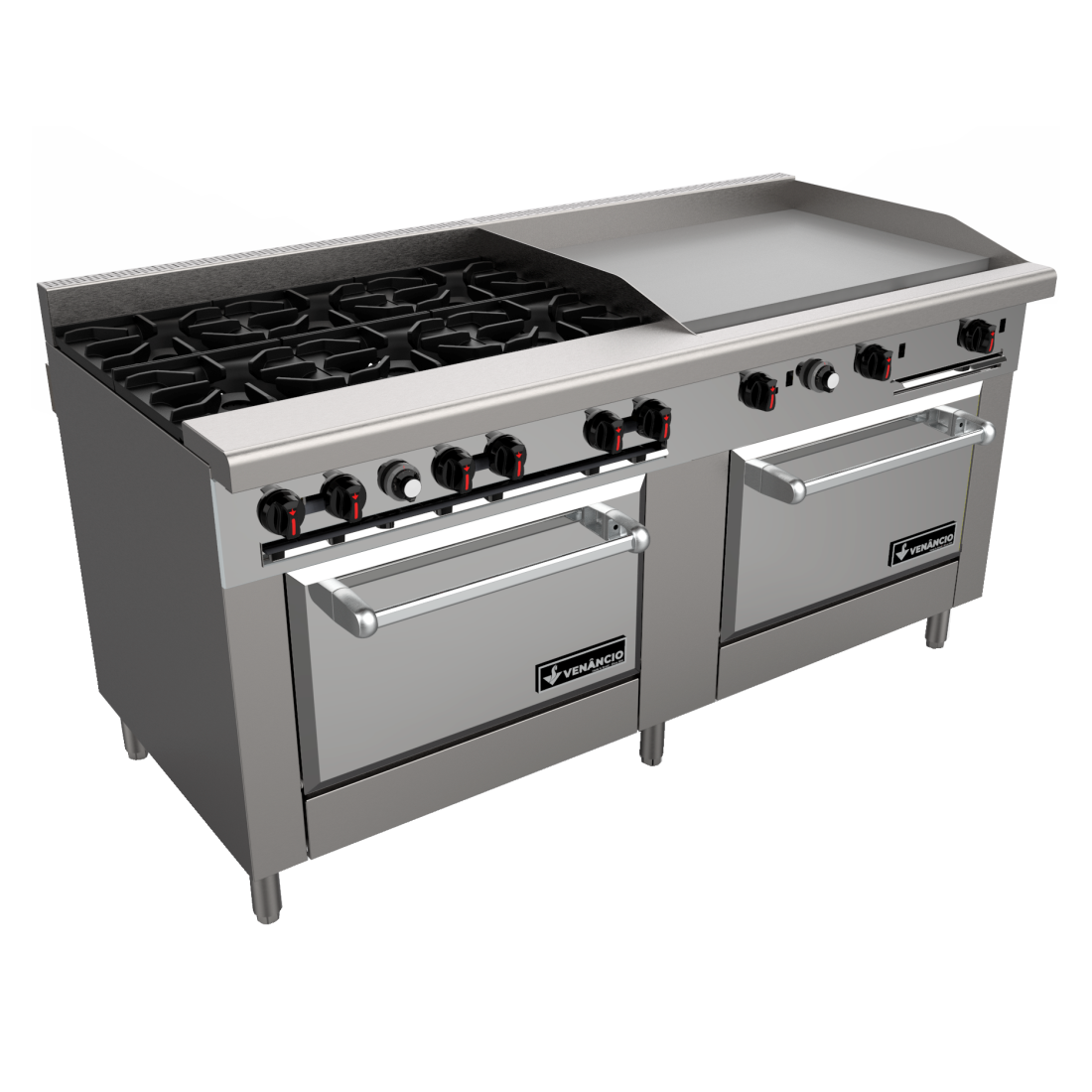

Venancio R482ST-24B24G Restaurant Series Elite Combo Ranges 24″ Burner 24" Griddle with Standard Oven
Venancio R482ST-24B24G Restaurant Series Elite Combo Ranges 24″ Burner 24" Griddle with Standard Oven
SKU: R482ST-24B24G
1
/
of
1
Regular price
$5,342.76
Regular price
Sale price
$5,342.76
Unit price
/
per
We offer free shipping in the USA (excluding Hawaii and Alaska) for all products over $500.
Couldn't load pickup availability
Features
Range:
- 2-year parts and labor warranty.
- Lifetime warranty 2-piece cast iron non-clog Burners 32,000 BTU (NAT) & 30,000 (LP) p/ burner.
- 14 gauge fully welded interlocking frame.
- Black metal insulated knobs.
- Adjustable 6″ legs.
- Conversion kit included.
- Stainless steel front and sides.
- Stainless steel removable crumb drawer under burners.
- Stainless steel 7″ plate rail.
- Stainless steel 22 1/2″ flue riser & lift-off heavy-duty shelf.
- One pilot light for each burner.
- Heavy-duty 12″ x 12″ removable cast-iron grates.
Griddle:
- 12″ gauge polished stainless steel plate.
- 3/4” (19.05 mm) thick polished carbon steel working griddle plate.
- Fully welded griddle plate.
- Enameled burners are placed every 12″, providing uniformity when operating.
- Pilots are accessible through the front panel.
- Easily removable stainless steel griddle grease trap.
Oven:
- 30,000 BTU/h oven with snap action thermostat from 175 °F to 550 °F and 100% safety shut off.
- 26 1⁄2″ Standard bakery depth on all ovens.
- Piezo spark ignition for oven bases.
- Double-sided enamel oven cavity (Exterior and interior top, bottom, and side).
- Heavy-duty oven wired rack – 3/8″ diameter.
- The standard oven has 3 shelf positions and 2 racks.
- Counterweight balanced doors.
